1903814-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1903814-1
Datasheet:
Description:

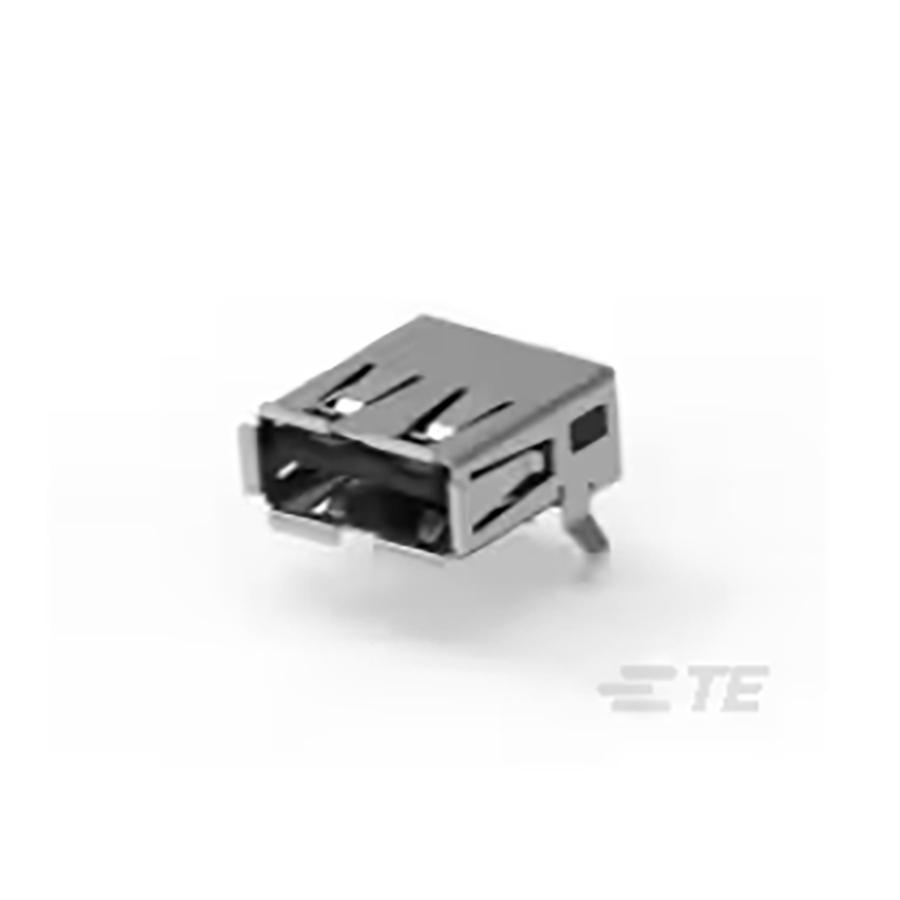

USB Connectors Through Hole USB-A (USB TYPE-A) Receptacle USB 2.0
| Parameter | Value |
|---|---|
| Length | 14.7 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 4 |
| Packaging | Tray |
| Depth | 14 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.5 mm |
| Type | USB-A (USB TYPE-A) |
| Number of Terminals | 4 |
| Current Rating | 1 A |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Black |
| Gender | Receptacle |
| Shielding | Shielded |
| Number of Contacts | 4 |
| ELV | Compliant |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle |
| Number of Positions | 4 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Mode | Singlemode |
| Max Voltage Rating (AC) | 30 V |
| Housing Color | Black |
| Plating | Nickel, Tin |
| PCB Thickness | 1.57 mm |
| Tail Length | 2.84 mm |
| Plating Thickness | 760 nm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Mounting Angle | Right Angle |
Stock: 397
Distributors
pcbx
pcbxUnit Price$1.64555
Ext.Price$1.64555
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.64555 | $1.64555 |
| 10 | $1.40019 | $14.00190 |
| 25 | $1.31209 | $32.80225 |
| 50 | $1.22939 | $61.46950 |
| 100 | $1.15190 | $115.19000 |
| 300 | $1.07930 | $323.79000 |
| 500 | $1.01127 | $505.63500 |
| 1000 | $0.94754 | $947.54000 |
